Sur-Ron Storm

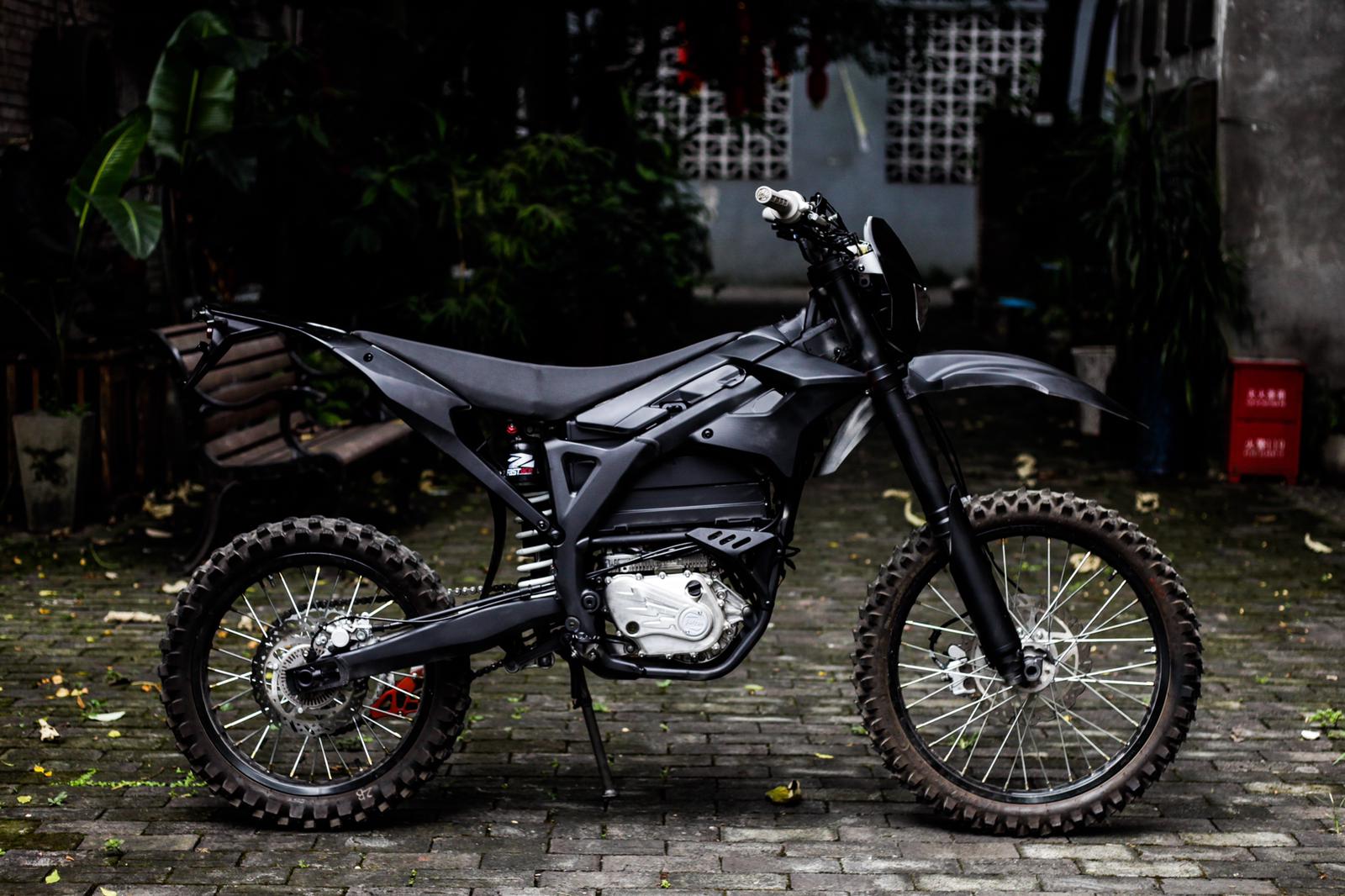

Sur-Ron Storm – Full Size Electric MX

After years of development & innovation, SUR-RON is now in the final development stages of the new full size electric dirt bike - the STORM. Equipped with the latest 96v 48aH high power system with gearbox, all new aluminium alloy forged frame, the top level 10C discharge rate lithium-ion battery. 290mm suspension travel up front. Plus a road legal version with ABS. It's a full size dirt bike with massive power & best power to weight ratio in its class. More news to follow at the EICMA show Milan.

Prices in the UK are expected to be around £8000 with the first Units available early 2020

 Model Comparison Chart
MODEL STORM (Road Legal) STORM  (MX)
Vehicle Dimension 2120mm×810mm×1430mm 2120mm×810mm×1430mm
Min. Ground Clearance 300mm 320mm
Wheelbase 1435mm 1435mm
Seat Height 900mm 920mm
Net Weight (Include Battery) 126KG 118KG
Stroke of Fr. Suspension 290mm 290mm
Stroke of Rr. Suspension/Wheel 115/290mm 115/290mm
Motor Type High Speed Brushless DC Air-Cooled Mid-Drive Motor High Speed Brushless DC Air-Cooled Mid-Drive Motor
Controller Type 150V Sine Wave Controller 150V Sine Wave Controller
Max. Motor Rotation Speed 8000r/min 8000r/min
Peak Motor Output Power 22.5KW 22.5KW
Max. Torque of Driving Wheel 520N.m 520N.m
Climbility 45° 45°
Top Speed 68 MPH 68 MPH
Range(@32 MPH) ≥ 62 miles ≥ 62 miles
Battery Type 96V/48Ah High-Rate Ternary Lithium Battery (With SONY VTC6 Cells) 96V/48Ah High-Rate Ternary Lithium Battery (With SONY VTC6 Cells)
Frame Material & Processing Method Forged Aluminum Alloy Frame Forged Aluminum Alloy Frame
Wheel Size Front.: 19 × 2.50   Rear.: 17 × 3.75 Front: 21 × 1.60   Rear: 18  ×  2.15
Tire Type & Size All Terrain Tire  Front: 110/80-19   Rear: 140/70-17 Off-Road Tire  Front: 80/100-21.  Rear.:100/90-18
Fr. Suspension Adjustable Up-Side-Down Absorber (φ47mm, Stroke 290mm) Adjustable Up-Side-Down Absorber (φ47mm, Stroke 290mm)
Rr. Suspension Adjustable Mono Air Absorber Adjustable Mono Air Absorber
ABS+ASR+BERS ABS+ASR+BERS ASR+BERS
Light Type All LED Lights None
Charging Time 3h 3h
USB Interface USB-2.1A Single Socket USB-2.1A Single Socket
Dashboard LCD LCD
GPS Position Function APP Connection Function None
Re-Gen Function Under Sport Mode with Re-Gen Under Sport Mode with Re-Gen
CAN Communication Function Yes Yes
Fault Diagnosis Function Yes Yes
Rear View Mirror Yes No
Turning Light LED No
Steering Lock Yes No







If you would like to know more or register your interest please send us a message below
